| Device name: | Silicone oil heating in situ freezer |
| Equipment type: | QFN-DGJ-F series |
| Dry area: | 0.1m2-2m2 (support customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Vegetables, fruits, plants, flowers, condiments, aquatic products, biological products, medicines, beverages, specimens, etc. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |

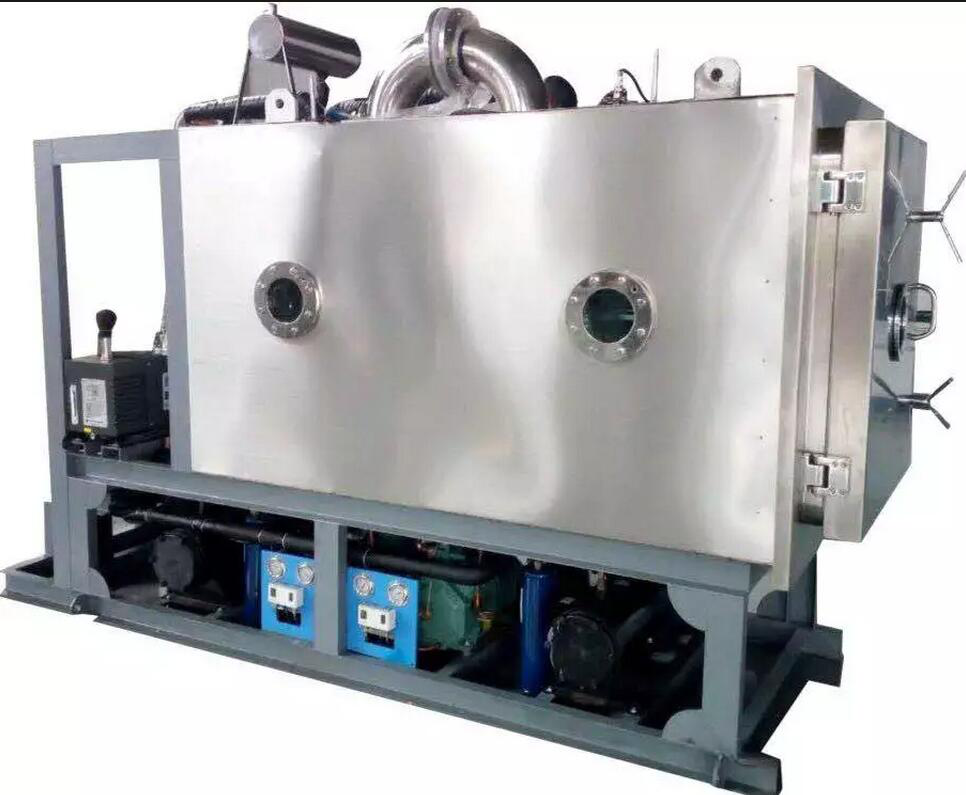

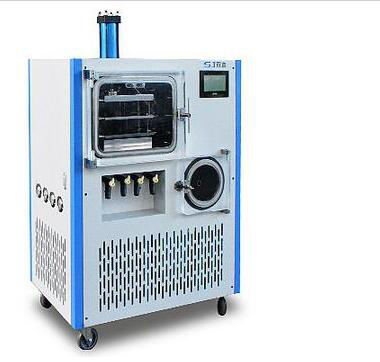

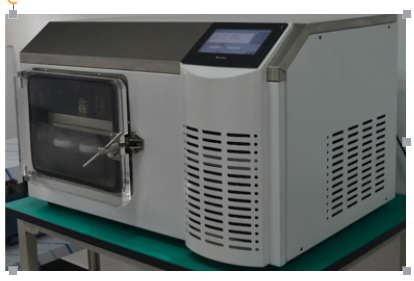

QFN-DGJ-5F/20F/30F/50F/100F/200F freeze dryer, in situ freeze drying. It has changed the tedious operation of the past drying process, prevented the pollution of materials, realized the automation of drying and sublimation, and was suitable for pilot production or small batch production. It
The model has the function of diaphragm heating and programming. It can memorize freeze-drying curve and facilitate users to observe the freeze-drying process of materials.
|
Model / parameter |
qfn - dgj - 5f |
qfn - dgj - 20f - c |
qfn - dgj - 20f - ct |
qfn - dgj - 20f |
qfn - dgj - 20ft |
qfn - dgj - 30f |
qfn - dgj - 30ft |
qfn - dgj 50f |
qfn - dgj - 50ft |
qfn - dgj - 100f |
qfn - dgj - 100ft |
qfn - dgj - 200f |
qfn - dgj - 200ft |
|
Total pallet area (M2) |
Zero point one |
Zero point two four |
Zero point two four |
Zero point two four |
Zero point two four |
Zero point three |
Zero point three |
Zero point five |
Zero point five |
One |
One |
Two |
|
|
Water capture capacity of cold well (kg/24H) |
2kg |
4kg |
4kg |
6kg |
6.5kg |
16 ibs |
16 ibs |
10kg |
10kg |
15kg |
15kg |
kg |
kg |
|
Minimum cooling trap temperature (centigrade) |
<-50℃ |
<-50℃ |
<-50℃ |
<-75℃ |
<-75℃ |
<-75℃ |
<-75℃ |
<-75℃ |
<-75℃ |
<-75℃ |
|
<-75℃ |
|
|
Vacuum degree (Pa)) |
- 15pa |
- 15pa |
<10PA |
||||||||||
|
Tray temperature (centigrade) |
-40℃~+50℃ |
-40℃~+50℃ |
-40℃~+50℃ |
-50℃~+65℃ |
-50℃~+65℃ |
-50℃~+65℃ |
-50℃~+65℃ |
-45℃~+70℃ |
|||||
|
Number of pallets |
One |
Two |
Two |
2+1 |
|
Three |
|
3+1 |
|
6+1 |
4+1 |
5+1 |
5+1 |
|
Tray size (mm) |
280*300 |
300*400 |
300*400 |
300*400 |
|
280x400 |
|
500x360 |
|
500*360 |
|
500*900 |
|
|
Assembly logistics (L) |
1L |
4L |
4L |
6L |
|
7L |
4L |
10l |
8L |
157 |
157 |
30l |
30l |
|
西林瓶?12mm (參考) |
Seven hundred |
One thousand and six hundred |
|
Two thousand |
|
Two thousand and six hundred |
|
Three thousand and six hundred |
|
Seven thousand nine hundred and twenty |
|
Eleven thousand |
|
|
Xilin bottle o 16mm (Reference) |
Three hundred |
Seven hundred |
|
Nine hundred and sixty |
|
One thousand four hundred and forty |
|
Two thousand |
|
Four thousand and ninety-two |
|
Eight thousand |
|
|
Xilin bottle o 22mm (Reference) |
Two hundred |
Five hundred |
|
Six hundred and sixty |
|
Seven hundred and twenty-eight |
|
One thousand and fifty |
|
Two thousand one hundred and twelve |
|
Four thousand |
|
|
Capping mode |
Common type |
Common type |
Manual cover type |
Common type |
Automatic hydraulic cap type |
Common type |
Automatic hydraulic cap type |
Common type |
Automatic hydraulic cap type |
Common type |
Automatic hydraulic cap type |
Common type |
Automatic hydraulic cap type |
|
Voltage |
all rolling stock required to operate on 220v |
|
|||||||||||
|
Whole machine size (mm) |
880*660*550 |
850*760*1250 |
|
1100*900*1280 |
|
1100*900*1280 |
|
1100*900*1900 |
|
2100*1200*2200 |
|
3000*1200*2300 |
|
|
Weight (kg) |
180 pounds |
500 pounds |
|
350kg |
|
350kg |
|
650kg |
|
1050kg |
|
3000kg |
|
|
Total power (W) |
1.1kw |
1.5kw |
|
1.8kw |
|
1.8kw |
|
3.5kw |
|
7kw |
|
10kw |
|
|
Heating mode |
Silicone oil heating |
|
|||||||||||
|
Partition temperature difference |
±1℃ |
|
|||||||||||
Note: the above model can be selected high.
